For Gaggia and La Marzocco
Dosing Funnel for Gaggia and La Marzocco (58 mm)
14.90 €
Final price under §19 UStG, plus shipping: 7.90 € to the EU (sets of three or more pieces: 9.90 €), 4.50 € within Germany

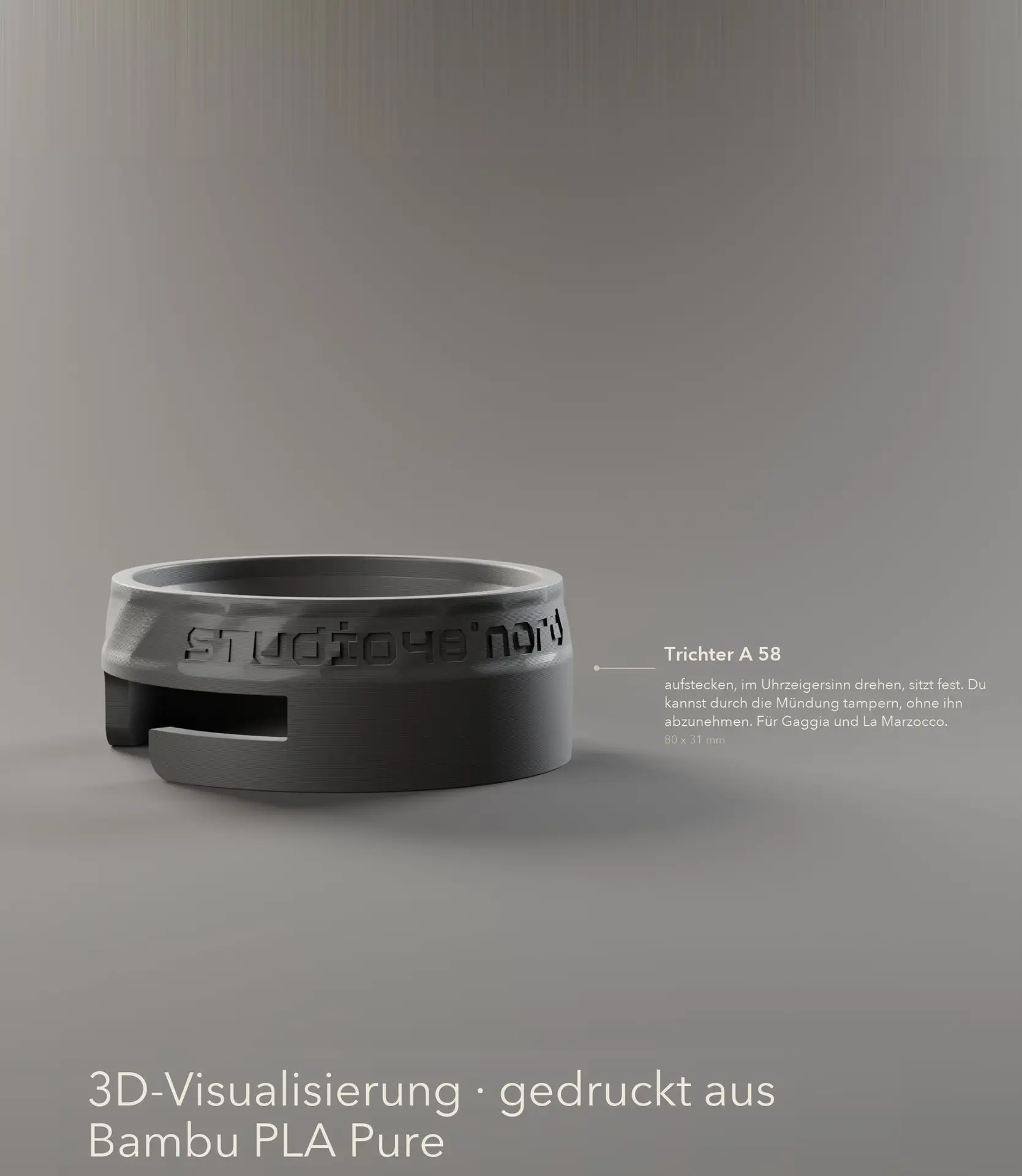

Grinding always left coffee grounds next to the portafilter, and that bugged me. So first I bought a cool magnetic funnel, but I couldn't tamp through it. Take it off, tamp, and there goes the coffee again. So I built my own. This one comes in 58 mm, for Gaggia and La Marzocco. Put it on, turn it clockwise, it sits. You can tamp straight through it.
- For Gaggia and La Marzocco. Both portafilters are here and both were checked by hand.
- Bayonet instead of magnets: set it on, twist, it sits.
- 60 mm clear opening, a 58 mm tamper goes through.
- A groove in the seat that follows the rolled basket rim.
- Made in-house: printed to order in Munich, with an embossed logo.
The click puts the item in your cart and the counter at the top goes up. You only order from the cart.
The Workflow
No coffee grounds on the counter.

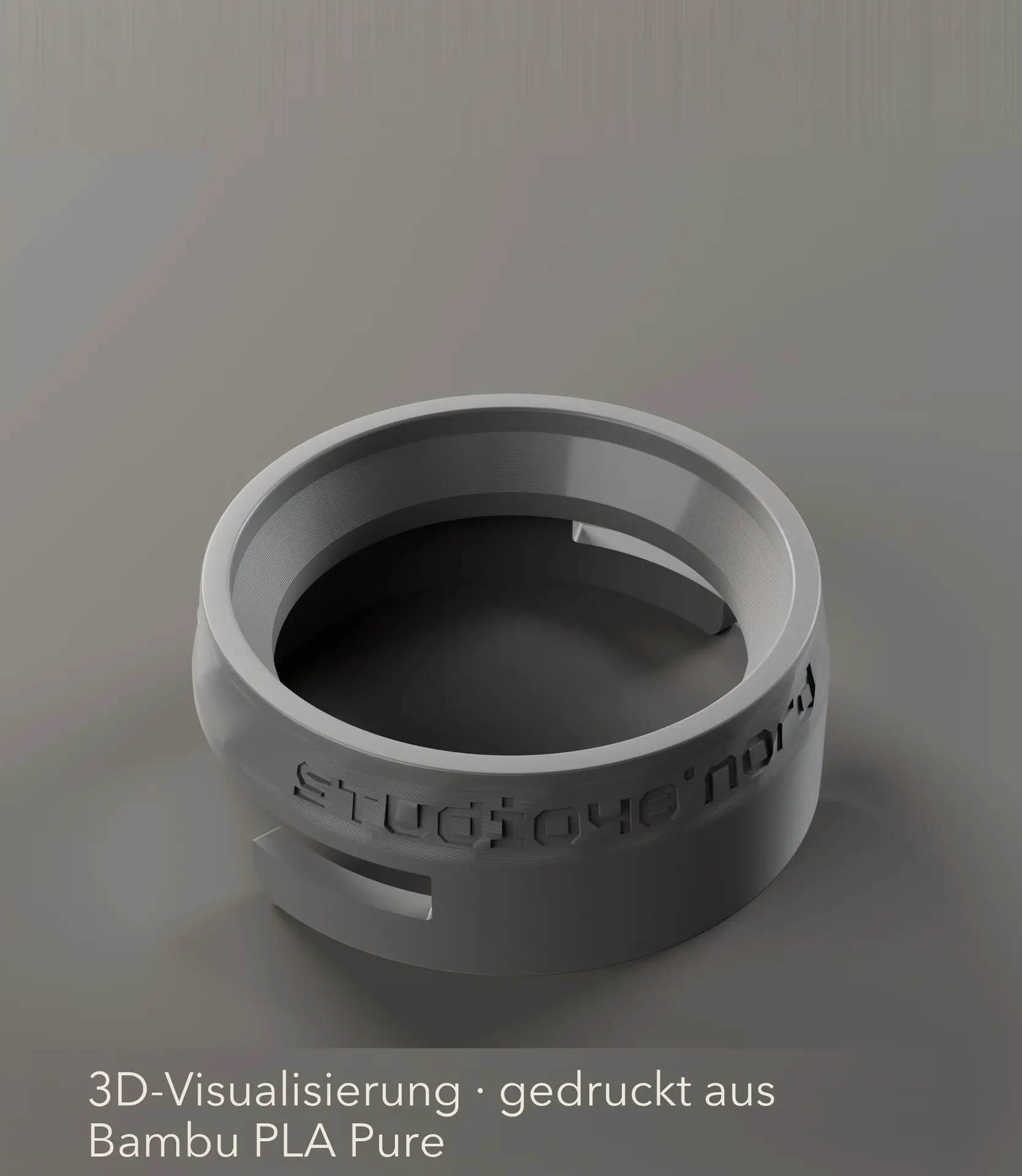

The funnel grips the bayonet lugs of your portafilter with two opposing slots. Set it on, twist clockwise, it sits tight. The ground coffee runs entirely into the basket.
The narrowest point of the opening measures 60.0 mm. A 58 mm tamper fits through, so you tamp straight through the funnel without taking it off. With the common magnetic funnels that is exactly what you can't do.
The Seat
A groove for the basket rim.
The top rim of a filter basket isn't flat, it's rolled into a half-round. Funnels with a flat seat therefore rest on a curve, and a gap is left in between.
The seat of this funnel has a groove with a 2.8 mm radius that follows the rim instead. It sits on the curve, not beside it. What we measured is the shape, not the amount of coffee: nobody counted how much stays behind, so there's no number here.
The Fit
Two portafilters measured, others not.
Gaggia: Baby, Carezza, Classic, Espresso, Deluxe, Evolution, New Baby, Baby06, Baby Dosata, New Espresso 06. And La Marzocco. Both portafilters are on the table here, the funnel has been set on and twisted, and it sits.
"58 mm" is a nominal size, not a standard. The number describes the filter basket, not the bayonet above it, and that is exactly where manufacturers diverge: the lugs sit in different places, at different widths and different thicknesses. Even our two portafilters differ at the rim by 0.8 mm.
This funnel is not built for the E61 group (Rocket, ECM, Lelit, Profitec, Bezzera, Quick Mill, Rancilio). That's not caution, it's arithmetic: the E61 head rim measures 72.8 mm, our collar bore 72.2 mm. It will not go over.
If you have a different 58 mm portafilter, give it a try. We're not telling you it fits. We're telling you we haven't measured it. If it doesn't fit, send it back: 14 days right of withdrawal plus 30 days return.
Made in Munich
3D printed when you order.
The funnel is only made after your order, in our Munich workshop. Afterwards it's checked, packed by hand, and on its way within 1 to 3 business days.
Printed from PLA. No water-carrying parts, so no PETG needed. Wipe with a damp cloth or rinse briefly cold, not dishwasher-safe.
At a Glance
The facts about the 3D printed funnel.
- Fits
- Gaggia, La Marzocco58 mm portafilters with two opposing bayonet lugs. Not for E61 and not for the Dedica.
- Height
- 30.7 mmOverall 80.4 × 80.4 × 30.7 mm, measured on the model.
- Clear opening
- 60.0 mmNarrowest point. A 58 mm tamper goes through.
- Mouth
- 70.0 mmClear width at the top.
- Pattern
- Twisted facetsDesign: twenty-sided, 1.5°/mm twist, facet width 12.4 mm.
- Material
- PLAPLA is a plastic derived from plant starch. No water-carrying parts, so no PETG needed.
- Care
- By handWipe damp or rinse cold, not dishwasher-safe.
- Shipping
- 4.50 € DE · 7.90 € EUProcessing within 1 to 3 business days, delivery in 1-4 business days (EU: 4-8). 3D print from Munich.
Frequently Asked Questions
Answered briefly.
Does the funnel fit my machine?
On Gaggia and La Marzocco, yes: we have both portafilters here and the funnel sits on them. On any other 58 mm portafilter we don't know. "58 mm" describes the filter basket, not the bayonet. It is not built for the E61 group, where the head rim at 72.8 mm is wider than our collar bore at 72.2 mm.
Does it fit my Dedica too?
No. The Dedica has a 51 mm portafilter with three tabs. For that there's the 51 mm dosing funnel, the same design one size down.
Can I tamp without taking it off?
Yes, that's what the bayonet is for. The narrowest point of the opening measures 60.0 mm, a 58 mm tamper goes through.
What is the groove in the seat?
The top rim of the filter basket is rolled into a half-round. The groove with a 2.8 mm radius follows that curve instead of resting flat on it. How much less coffee ends up in the gap we have not measured, so we promise nothing about it.
How do I clean it?
Wipe with a damp cloth or rinse briefly under cold water. It's printed from PLA and not dishwasher-safe.
